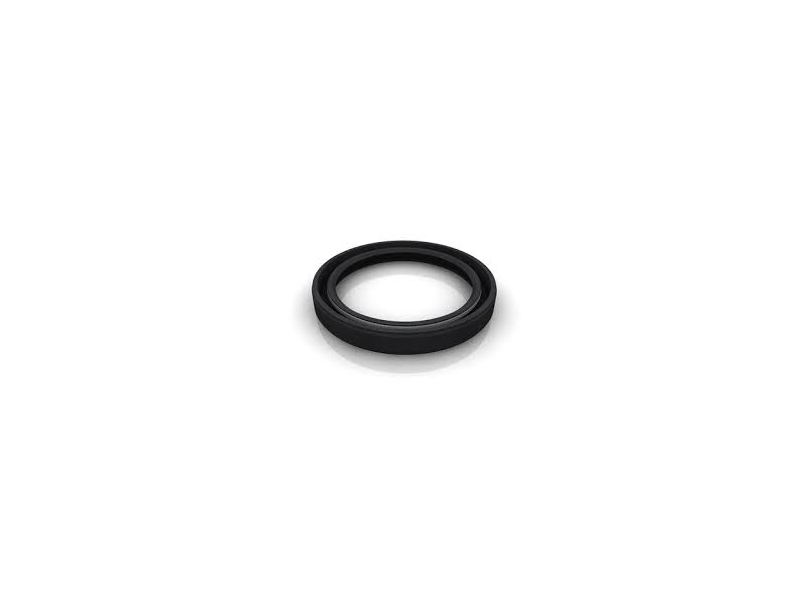

OIL SEAL 500X540X20 NBR

Itemnumber: OT50054020
Standard sales price EUR 325.53
EUR 260.42 / STK
EUR 208.34 ex. VAT
  •
500 X 540 X 20


More information

Need support?
Please contact Customer Service: +45 86 15 01 11
  • OT50054020 is an oil seal and can be used in rotary/axial moving applications. The material used on this oil seal is made of NBR 70 shore. The maximum allowed pressure is 0,5 BAR.

    The dimensions has an inner diameter of 500 mm, an outer diameter of 540 mm and a height of 20 mm.

    About the sealing profile OT

    The OT profile has a metal ring in the core of the oil seal, which provides stability. The outer part is typically molded from NBR, but is also available in many other materials. In most applications, oil seals are used to provide a seal for oil, grease or water against rotating parts.

    About the material NBR

    Nitrile is a widely used nitrile butadiene and acrylo nitrile polymer. The NBR formulas typically contains between 30% and 50% acrylonitrile (ACN). The NBR which has a working temperature between -40°C and +100°C show extremely high resistance under different working conditions such as mineral oils (H, H-L and H-LP type lubricating oils) and grease and mineral based fire resistance oils (HFB and HFC group oils), vegetable and organic oils, and aliphatic hydrocarbons (propane, butane, petrol). NBR is not recommended for aromatic hydrocarbons (benzene, trichloroethylene, HFD type fire resistance oils), glycol and ether contained break hydraulics.

  • Designation Olietætning
    Inner diameter 500.00
    Outer diameter 540.00
    Description 500 X 540 X 20
    Height/Width 20
    Tarifnumber 84842000
    Speed (M/S) 12
    Max pressure (BAR) 0,5
    Shore 70
    Temperature (CELSIUS) -40/+100
    Designation Oil seal
    Material NBR
    Area of use Rotary/Axial moving applications
