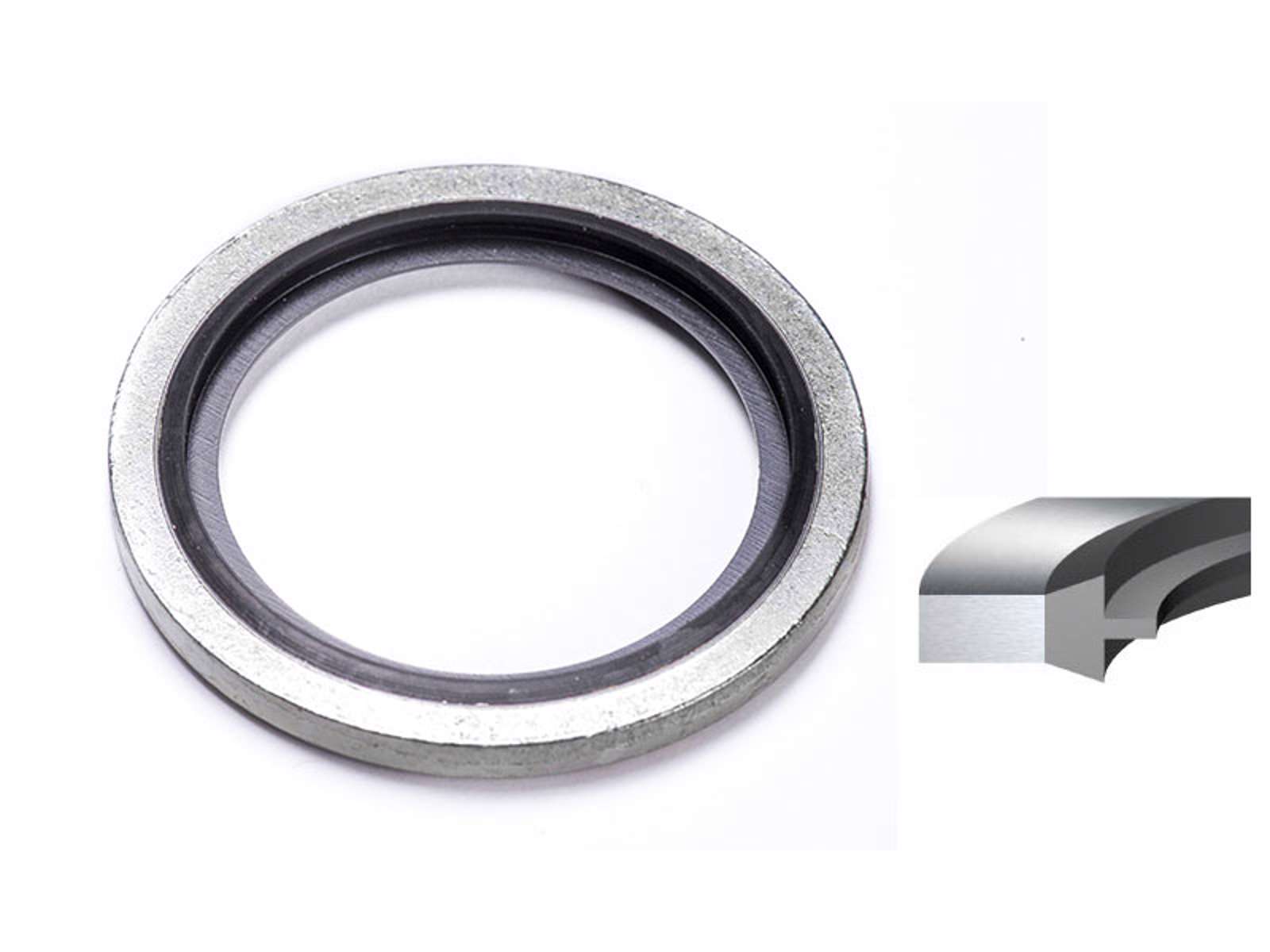

TREDO012-S-A2 is an bonded seal/washer and can be used in self-sealing washer applications. The material used on this bonded seal/washer is made of Stainless steel/NBR 70 shore.
The dimensions has an inner diameter of 10.37 mm, an outer diameter of 15.88 mm and a height of 2 mm.
Bonded seal consists of an outer metal ring and an inner sealing part. They are typically used as static seals under a screw head or in flanges to seal.
Stainless steel (AISI 304) has good corrosion resistance and wear resistance. The NBR material provides good chemical resistance to hydraulic oils and grease.
Designation | Bonded seal |
Inner diameter | 10.37 |
Outer diameter | 15.88 |
Height/Width | 2 |
Shore | 70 |
Temperature (CELSIUS) | -25/+100 |
Tarifnumber | 40169300 |
Material | Stainless steel/NBR |
Designation | Bonded seal/washer |
Area of use | Self-sealing washer |
