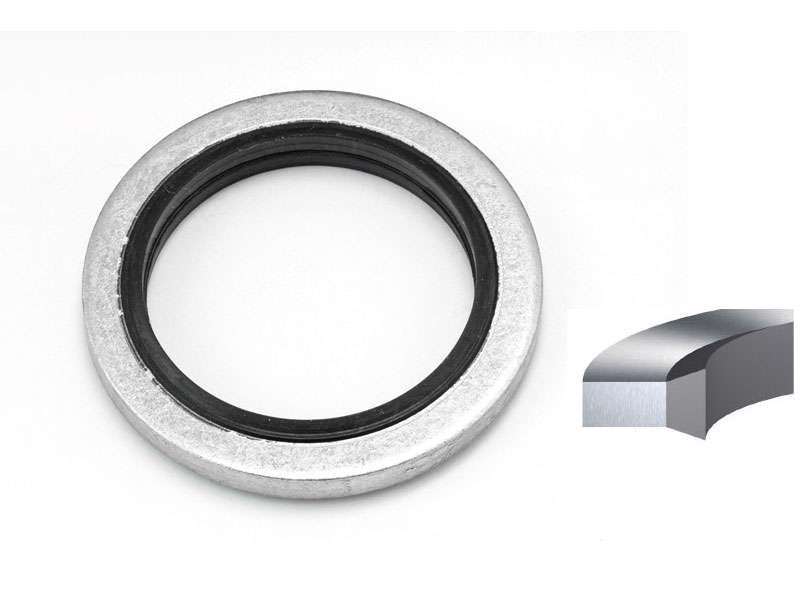

BONDED SEAL 6.9X13.2X1.3 NBR

Itemnumber: TREDO010
.
EUR 0.91 / STK
EUR 0.73 ex. VAT
  •
TREDO RINGE


More information

Need support?
Please contact Customer Service: +45 86 15 01 11
  • TREDO010 is an bonded seal/washer and can be used in self-sealing washer applications. The material used on this bonded seal/washer is made of Zinc-plated/NBR 70 shore.

    The dimensions has an inner diameter of 6.9 mm, an outer diameter of 13.2 mm and a height of 1.3 mm.

    About the sealing profile Bonded-seal

    Bonded seal consists of an outer metal ring and an inner sealing part. They are typically used as static seals under a screw head or in flanges to seal.

    About the material Zinc-plated/NBR

    Plated-zinc provides improved corrosion resistance and thus extends the life of the product. The NBR material provides good chemical resistance to hydraulic oils and grease.

  • Designation Bonded seal
    Inner diameter 6.90
    Outer diameter 13.20
    Description TREDO RINGE
    Tarifnumber 40169300
    Height/Width 1.3
    Shore 70
    Temperature (CELSIUS) -25/+100
    Material Zinc-plated/NBR
    Designation Bonded seal/washer
    Area of use Self-sealing washer
