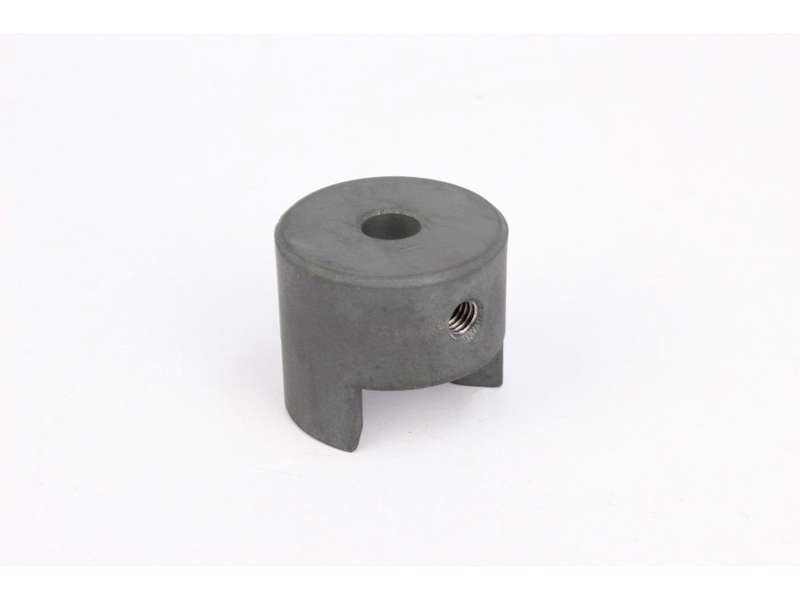

JAW COUPLING L 070

Itemnumber: KOBL070
Standard sales price EUR 5.74
EUR 4.59 / STK
EUR 3.67 ex. VAT
  •
UDV DIAMETER 35 MM


More information

Need support?
Please contact Customer Service: +45 86 15 01 11
  • Designation Kobling
    Outer diameter 35.00
    Description UDV DIAMETER 35 MM
    Description-2 FORBORING 9 MM - MAX BORING 19 MM
    Pre-bore (mm) 9
    Max bore (mm) 19
    Hub diameter (mm) 35
    Dimension (L) 51
    Nominal torque (Nm) 5.77
    Limiting speed (1/min) 14,000
    Dimension (F) 9.50
    Bolt size M6
    Dimension (C) 19
    Designation Coupling
