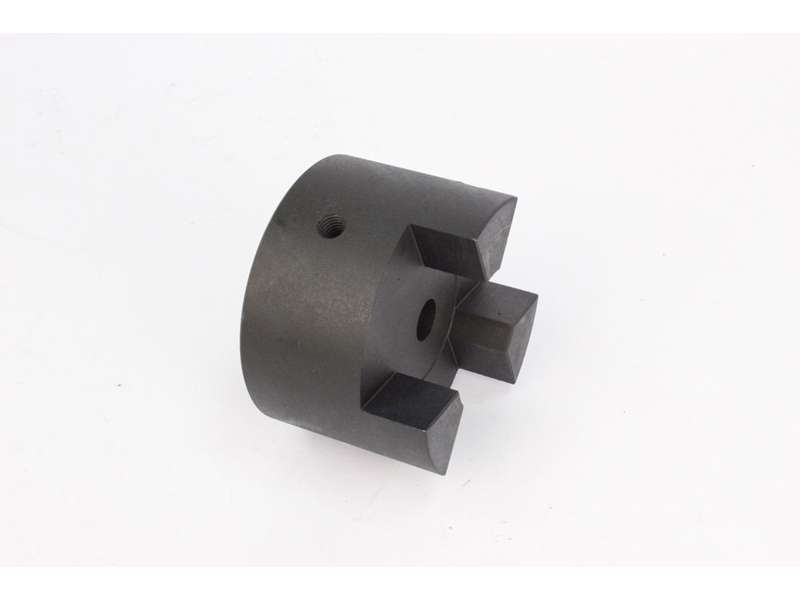

JAW COUPLING L 150

Itemnumber: KOBL150
Standard sales price EUR 81.75
EUR 65.40 / STK
EUR 52.32 ex. VAT
  •
UDV DIAMETER 96 MM


More information

Need support?
Please contact Customer Service: +45 86 15 01 11
  • Designation Kobling
    Outer diameter 96.00
    Description UDV DIAMETER 96 MM
    Description-2 FORBORING 15 MM - MAX BORING 48 MM
    Pre-bore (mm) 15
    Max bore (mm) 48
    Hub diameter (mm) 96
    Dimension (L) 115
    Nominal torque (Nm) 150
    Limiting speed (1/min) 4,000
    Dimension (F) 22.50
    Bolt size M10
    Dimension (C) 45
    Designation Coupling
