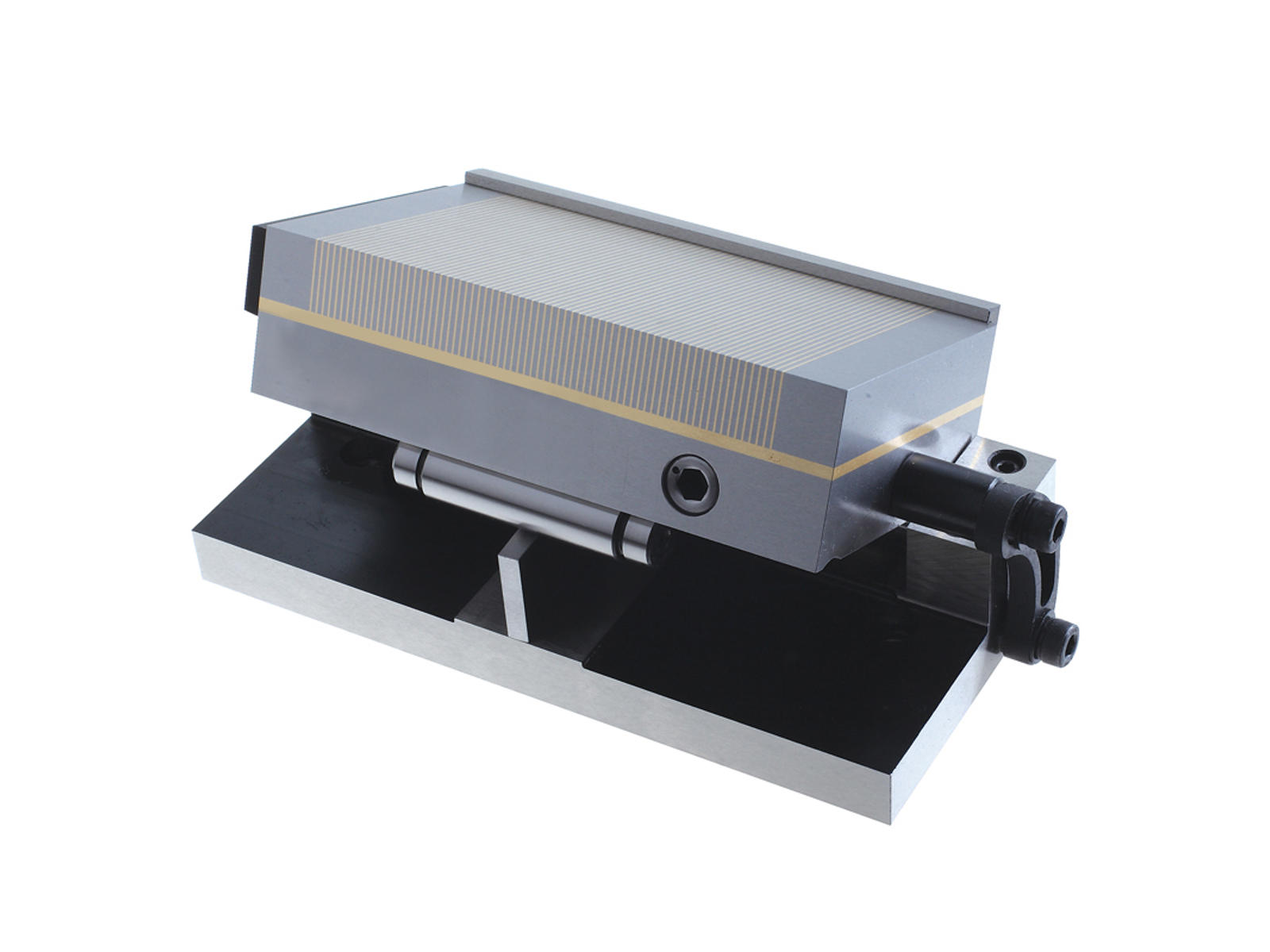

Diesella Sinus magnetic chuck (1,5+0,5) 150x450 mm

Itemnumber: DIE30-355-630
Std. sales price EUR 2,272.56
EUR 1,818.05 / PCS
EUR 1,454.44 ex. VAT
  •
Sinus magnetic chuck (1,5+0,5) 150x450 mm


More information

Need support?
Please contact Customer Service: +45 86 15 01 11
  • Clamping for grinding, EDM and measurement of angle accuracy• 150x450 mm• Pole distance 0.5 + 1.5 mm (brass/steel).• Holding force max. 120N / cm².• Precision ground base offers extreme rigidity, hardened to HRC60.• Stable magnetic plane locking.• Allows spark machining close to the magnet surface.
  • UNSPSC 27,112,109
    Vendor item no 30355630
    Manufacturer/Brand Diesella
    EAN 5708004053736
    Description POL AFSTAND 0,5+1,5 MM
    Tarifnumber 8466202000
