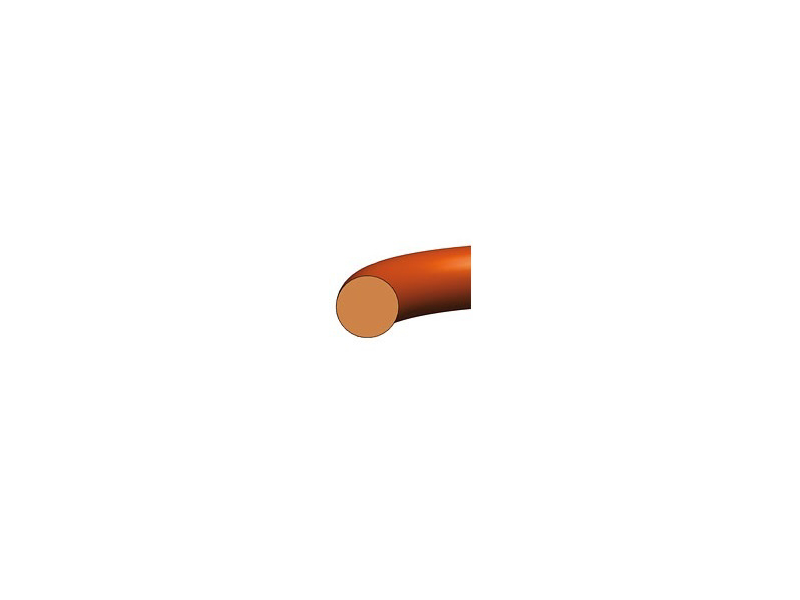

SNORV0262 is an o-ring cord and can be used in applications. The material used on this o-ring cord is made of VITON 75 shore.
The product has a height of 2,62 mm.
O-ring cord can be cut to the desired length on request. The two ends can then be glued together with a suitable adhesive to form an o-ring. Ends can also be vulcanized. This is done in the case where there is an urgent need for an o-ring in a special size, which is not in stock or can be obtained in time.
It is resistant to any type of grease oil and solvent between -30°C and +200°C. Better results can be obtained in low gas transfer systems. It has a good resistance to a range of different chemicals (especially greases, fuels, aliphatic and aromatic hydrocarbons, some fire resistant oils).
Nominal ø d2 | Tolerance class | ||
---|---|---|---|
over [mm] | op til [mm] | NBR, FKM, EPDM [mm] | VMQ [mm] |
0 | 1,5 | ±0.15 | ±0.25 |
1,5 | 2,5 | ±0.20 | ±0.35 |
2,5 | 4 | ±0.25 | ±0.40 |
4 | 6,3 | ±0.35 | ±0.50 |
6,3 | 10 | ±0.40 | ±0.70 |
10 | 16 | ±0.50 | ±0.80 |
16 | 25 | ±0.70 | ±1.00 |
25 | 40 | ±0.80 | ±1.30 |
40 | 63 | ±1.00 | ±1.60 |
Designation | O-ring snor |
Shore | 75 |
Alternative | Produktionsnr. TR13 |
Height/Width | 2,62 |
Tarifnumber | 40169300 |
Designation | O-ring cord |
Material | VITON |
