DUPLEX SPROCKET FOR 25.4X17.02 TEETH=37

Itemnumber: KHND16-37
Standard sales price EUR 885.75
EUR 531.45 / STK
EUR 425.16 ex. VAT
  •
1" - 37 TDR. 16B-2


More information

Need support?
Please contact Customer Service: +45 86 15 01 11
  • Designation Navkædehjul
    Description 1" - 37 TDR. 16B-2
    Tarifnumber 84839089

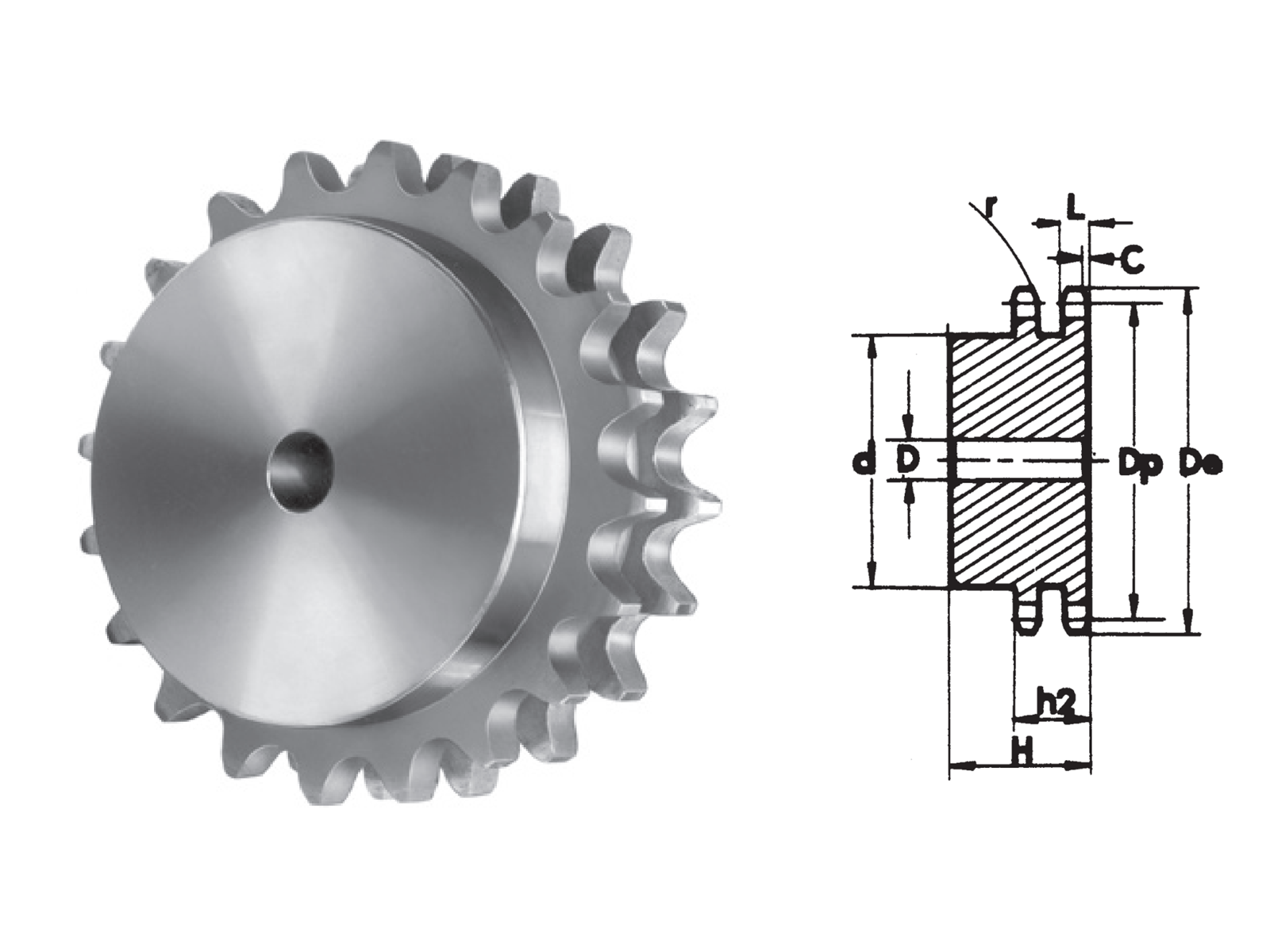

    Number of teeth 37
    External diameter (De) (mm) 312.60
    Dimension (Dp) (mm) - Pitch diameter 299.51
    Hub diameter (mm) 140
    Pre-bore (mm) 25
    Total width (H) (mm) 70
    Pitch (mm) 25.40
    Chain width (mm) 17.02
    Roller diameter (mm) 15.88
    Tooth width (h/h1/L) (mm) 15.80
    Dimension (h2) 47.70
    Material C45 Steel
    Designation Sprocket
