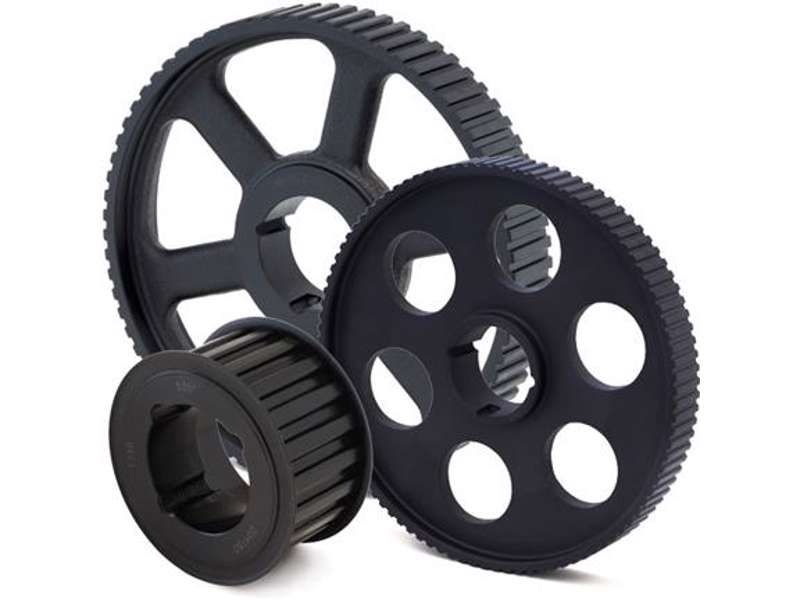

TIMING BELT PULLEY 120-H-150

Itemnumber: ZRS-120-H-150-TL
Contact customerservice for more information on this product.
F/TAPERBØSNING 2517


More information
Need support?
Please contact Customer Service: +45 86 15 01 11
  • Designation Tandremskive
    Description F/TAPERBØSNING 2517
    Tarifnumber 84835080
    Profile type 9A
    Taper lock 2517
    Max bore (mm) 60
    Dimension (Dp) (mm) - Pitch diameter 485.10
    Dimension (De) 483.73
    Hub diameter (mm) 106
    Dimension (Di) 462
    Dimension (F) 46
    Dimension (S) 45
    Dimension (R) 0.50
    Number of teeth 120
    Belt width 38.1
    Designation Timing belt pulley
