TIMING BELT PULLEY 30-L-100

Itemnumber: ZRS-30-L-100-TL
Std. sales price EUR 57.12
EUR 45.69 / STK
EUR 36.56 ex. VAT
Need support?
Please contact Customer Service: +45 86 15 01 11
  • Designation Tandremskive
    Profile type 5F
    Flange type FL068
    Taper lock 1210
    Max bore (mm) 32

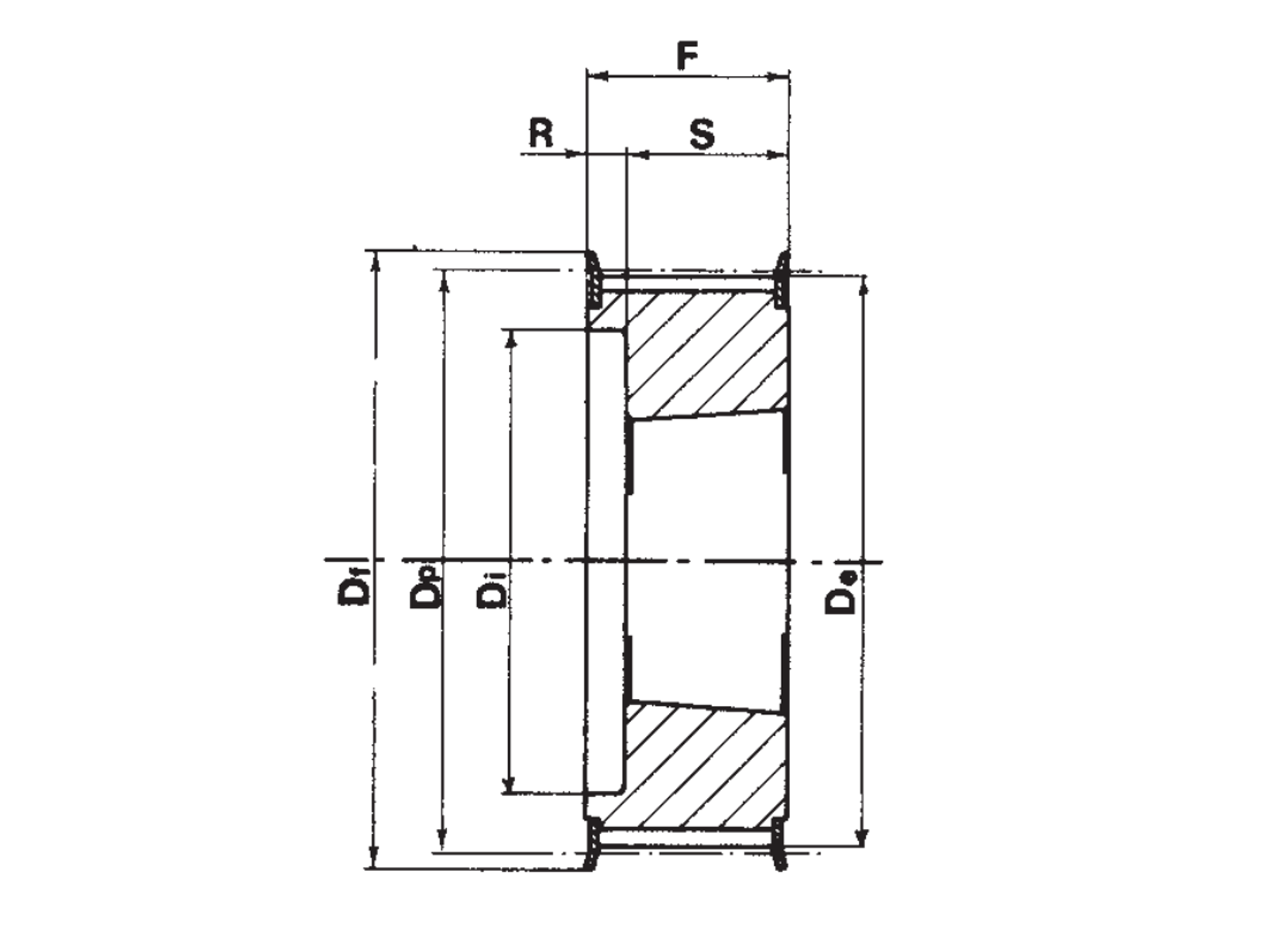

    Dimension (Dp) (mm) - Pitch diameter 90.96
    Dimension (De) 90.20
    Dimension (Df) (mm) - Flange diameter 97
    Dimension (Di) 71
    Dimension (F) 32
    Dimension (S) 25
    Dimension (R) 7
    Number of teeth 30
    Belt width 25.4
    Tarifnumber 84835080
    Designation Timing belt pulley
