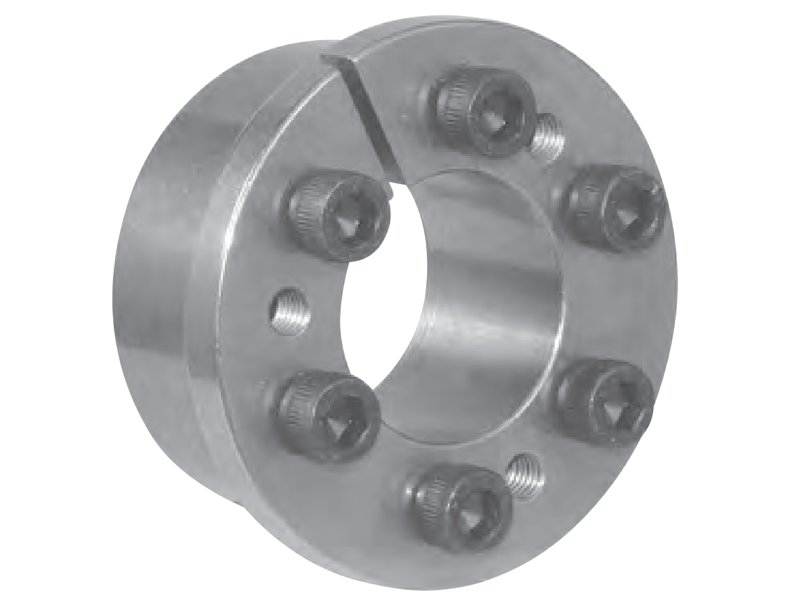

HUB LOCK KLAB065

Itemnumber: SPÆNDKLAB065
Standard sales price EUR 114.15
EUR 91.32 / STK
EUR 73.06 ex. VAT
Need support?
Please contact Customer Service: +45 86 15 01 11
  • Inner diameter 65.00
    Outer diameter 95.00
    Description 65X95
    Outer diameter (D1) (mm) 104
    Height (H) 41
    Height (H1) 33
    Height (H2) 20
    Height (H3) 25
    Bolt size M8x25
    No. of screws to tighten 9
    No. of screws to loosen 3
    Transmissible torque of locking set (Nm) 2,710
    Transmissible axial force (KN) 83
    Pressure of locking set on shaft (N/mm^2) 189
    Pressure of locking set on hub (N/mm^2) 129
    Remarks Self-centering
    Additional info Self-locking
