HUB LOCK KLAB085

Name: HUB LOCK KLAB085
SKU: SPÆNDKLAB085
Price: 104.035 EUR
Availability: OutOfStock

Itemnumber: SPÆNDKLAB085

Standard sales price EUR 208.07

EUR 104.04 / STK

EUR 83.23 ex. VAT

Need support?
Please contact Customer Service: +45 86 15 01 11

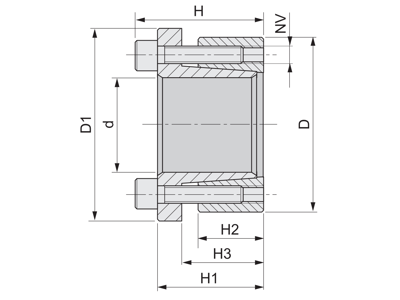

Inner diameter	85.00
Outer diameter	125.00
Outer diameter (D1) (mm)	134
Height (H)	50
Height (H1)	40
Height (H2)	24
Height (H3)	30
Bolt size	M10x30
No. of screws to tighten	9
No. of screws to loosen	3
Transmissible torque of locking set (Nm)	5,742
Transmissible axial force (KN)	135
Pressure of locking set on shaft (N/mm^2)	195
Pressure of locking set on hub (N/mm^2)	133
Tarifnumber	0
Remarks	Self-centering
Additional info	Self-locking
