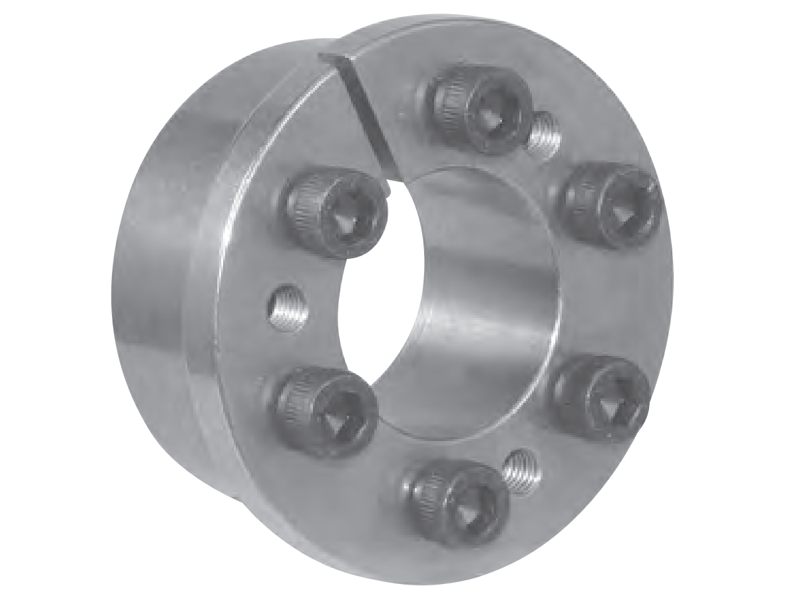

HUB LOCK KLBB225

Itemnumber: SPÆNDKLBB225
Standard sales price EUR 56.99
EUR 45.59 / STK
EUR 36.47 ex. VAT
Need support?
Please contact Customer Service: +45 86 15 01 11
  • Inner diameter 25.00
    Outer diameter 65.00
    Description 25X65
    Outer diameter (D1) (mm) 72
    Height (H) 39
    Height (H1) 31
    Height (H2) 17
    Height (H3) 22
    Bolt size M8x25
    No. of screws to tighten 5
    No. of screws to loosen 3
    Transmissible torque of locking set (Nm) 579
    Transmissible axial force (KN) 46
    Pressure of locking set on shaft (N/mm^2) 321
    Pressure of locking set on hub (N/mm^2) 124
    Remarks Self-centering
    Additional info Self-locking
