HUB LOCK KLCX018

Itemnumber: SPÆNDKLCX018
Standard sales price EUR 224.64
EUR 179.71 / STK
EUR 143.77 ex. VAT
Need support?
Please contact Customer Service: +45 86 15 01 11

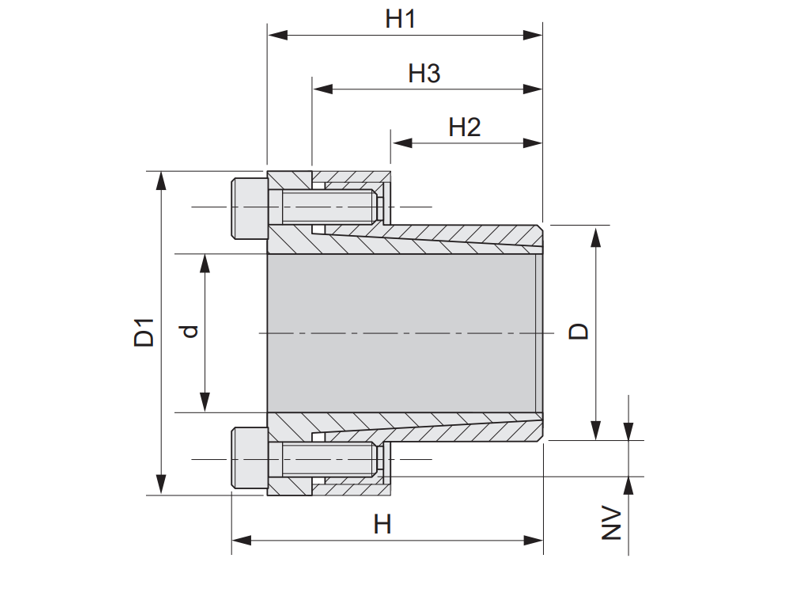

  • Inner diameter 18.00
    Outer diameter 26.00
    Description 18X26
    Outer diameter (D1) (mm) 47
    Height (H) 45
    Height (H1) 39
    Height (H2) 18
    Height (H3) 31
    Bolt size M6x18
    No. of screws to tighten 4
    No. of screws to loosen 3
    Transmissible torque of locking set (Nm) 87
    Transmissible axial force (KN) 10
    Pressure of locking set on shaft (N/mm^2) 79
    Pressure of locking set on hub (N/mm^2) 55
    Remarks Self-centering
