HUB LOCK KLDA025

Itemnumber: SPÆNDKLDA025
Standard sales price EUR 47.75
EUR 38.20 / STK
EUR 30.56 ex. VAT
Need support?
Please contact Customer Service: +45 86 15 01 11

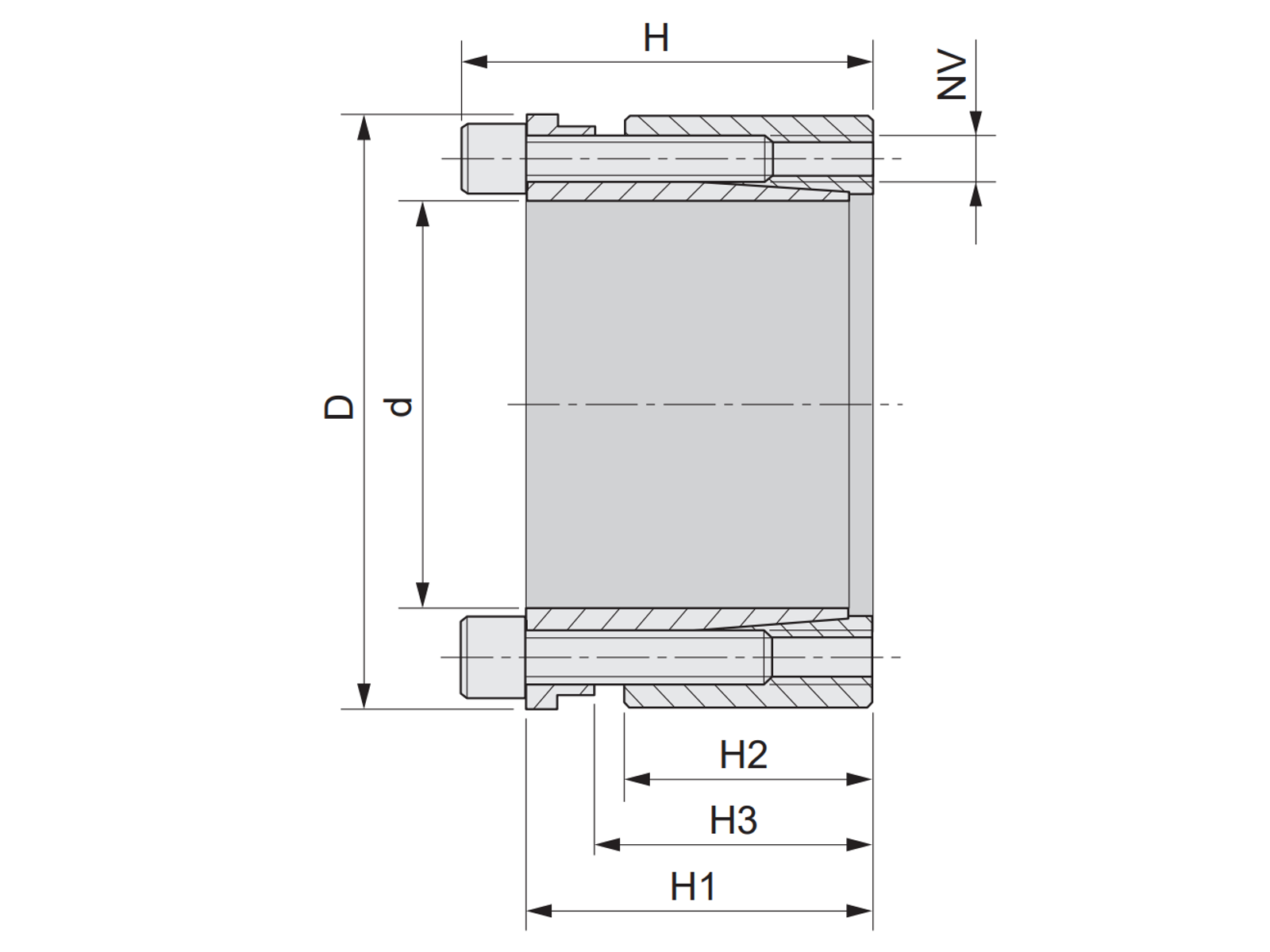

  • Inner diameter 25.00
    Outer diameter 50.00
    Description 25X50
    Tarifnumber 84839089
    Height (H) 45
    Height (H1) 39
    Height (H2) 26
    Height (H3) 31
    Bolt size M6x25
    No. of screws to tighten 6
    No. of screws to loosen 3
    Transmissible torque of locking set (Nm) 606
    Transmissible axial force (KN) 48
    Pressure of locking set on shaft (N/mm^2) 220
    Pressure of locking set on hub (N/mm^2) 110
    Remarks Self-centering
    Additional info Self-locking
