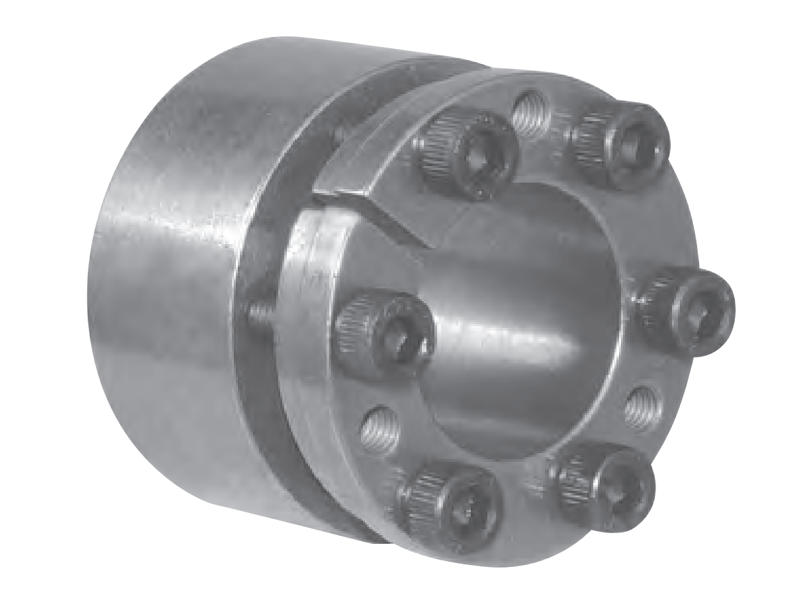

HUB LOCK KLDA070

Itemnumber: SPÆNDKLDA070
Standard sales price EUR 220.44
EUR 176.35 / STK
EUR 141.08 ex. VAT
Need support?
Please contact Customer Service: +45 86 15 01 11
  • Inner diameter 70.00
    Outer diameter 110.00
    Description 70X110
    Height (H) 67
    Height (H1) 57
    Height (H2) 40
    Height (H3) 46
    Bolt size M10x35
    No. of screws to tighten 8
    No. of screws to loosen 4
    Transmissible torque of locking set (Nm) 6,607
    Transmissible axial force (KN) 189
    Pressure of locking set on shaft (N/mm^2) 199
    Pressure of locking set on hub (N/mm^2) 127
    Remarks Self-centering
    Additional info Self-locking
