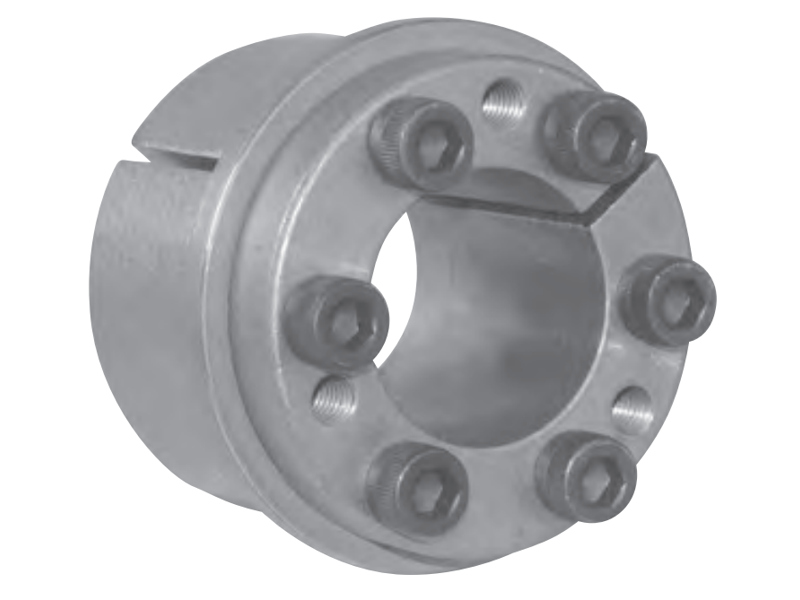

HUB LOCK KLDB030

Itemnumber: SPÆNDKLDB030
Standard sales price EUR 60.81
EUR 48.65 / STK
EUR 38.92 ex. VAT
Need support?
Please contact Customer Service: +45 86 15 01 11
  • Inner diameter 30.00
    Outer diameter 55.00
    Description 30X55
    Outer diameter (D1) (mm) 61
    Height (H) 45
    Height (H1) 39
    Height (H2) 26
    Height (H3) 31
    Bolt size M6x20
    No. of screws to tighten 6
    No. of screws to loosen 3
    Transmissible torque of locking set (Nm) 480
    Transmissible axial force (KN) 32
    Pressure of locking set on shaft (N/mm^2) 121
    Pressure of locking set on hub (N/mm^2) 66
    Remarks Self-centering
    Additional info Self-locking
