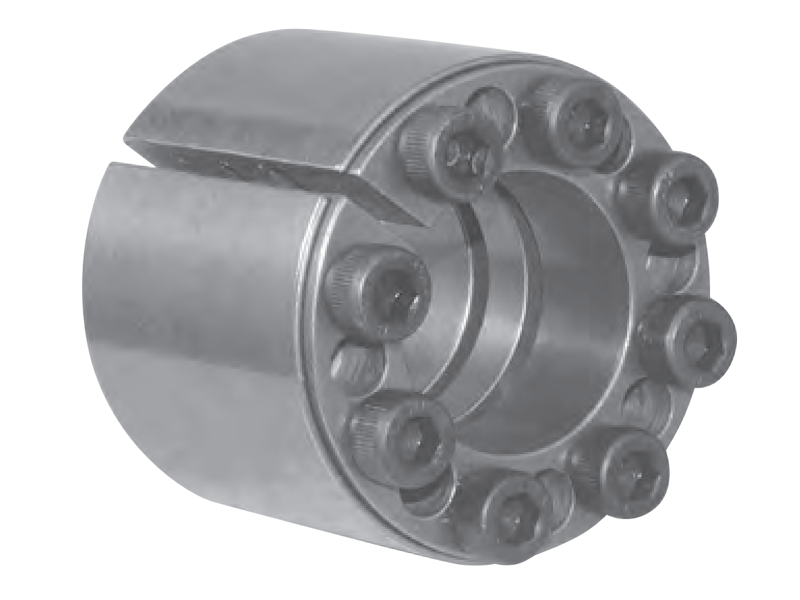

HUB LOCK KLEE025

Itemnumber: SPÆNDKLEE025
Standard sales price EUR 71.59
EUR 57.27 / STK
EUR 45.82 ex. VAT
Need support?
Please contact Customer Service: +45 86 15 01 11
  • Inner diameter 25.00
    Outer diameter 55.00
    Description 25X55
    Height (H) 46
    Height (H1) 40
    Height (H2) 32
    Bolt size M6x35
    No. of screws to tighten 6
    No. of screws to loosen 3
    Transmissible torque of locking set (Nm) 799
    Transmissible axial force (KN) 64
    Pressure of locking set on shaft (N/mm^2) 314
    Pressure of locking set on hub (N/mm^2) 107
    Remarks Self-centering
    Additional info Self-locking
