HUB LOCK KLEE260

Itemnumber: SPÆNDKLEE260
Std. sales price EUR 3,935.06
EUR 2,754.54 / STK
EUR 2,203.63 ex. VAT
Need support?
Please contact Customer Service: +45 86 15 01 11

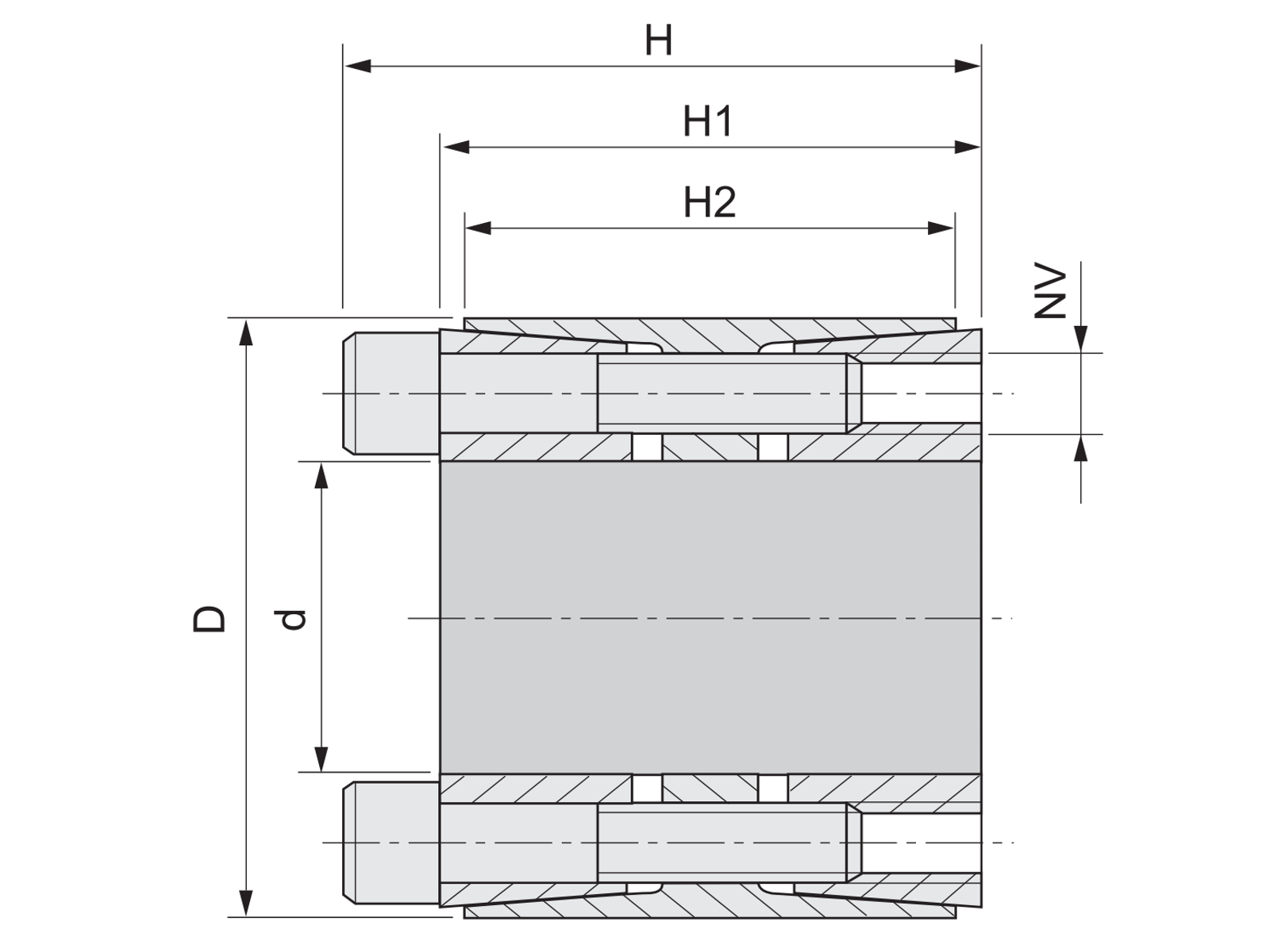

  • Inner diameter 260.00
    Outer diameter 325.00
    Height (H) 166
    Height (H1) 150
    Height (H2) 134
    Bolt size M16x120
    No. of screws to tighten 21
    No. of screws to loosen 10
    Transmissible torque of locking set (Nm) 221,930
    Transmissible axial force (KN) 1,707
    Pressure of locking set on shaft (N/mm^2) 176
    Pressure of locking set on hub (N/mm^2) 129
    Remarks Self-centering
    Additional info Self-locking
