HUB LOCK KLGX028

Itemnumber: SPÆNDKLGX028
Standard sales price EUR 249.75
EUR 124.87 / STK
EUR 99.90 ex. VAT
Need support?
Please contact Customer Service: +45 86 15 01 11

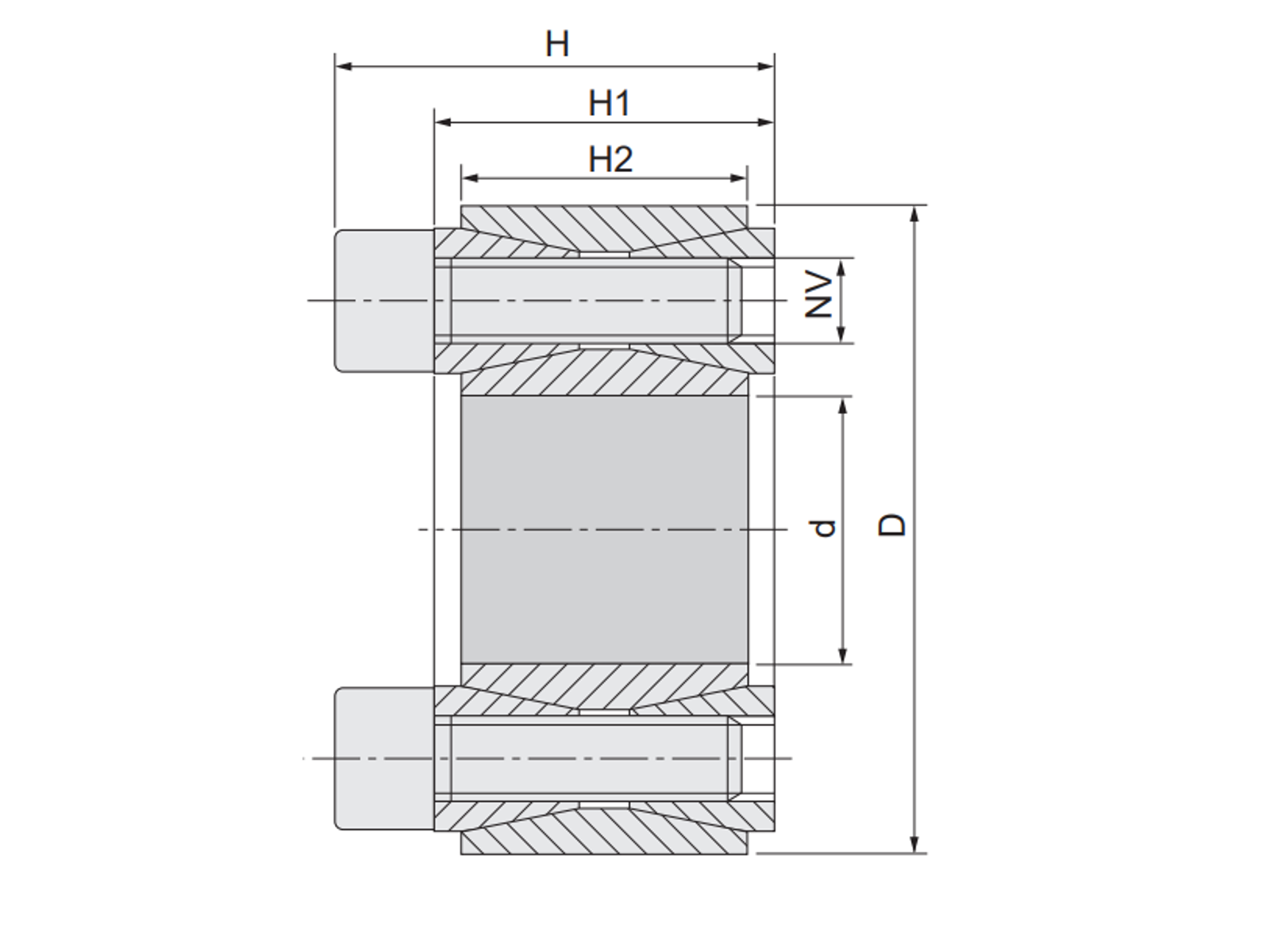

  • Inner diameter 28.00
    Outer diameter 55.00
    Height (H) 26
    Height (H1) 20
    Height (H2) 17
    Bolt size M6x18
    No. of screws to tighten 9
    No. of screws to loosen 3
    Transmissible torque of locking set (Nm) 170
    Transmissible axial force (KN) 12
    Pressure of locking set on shaft (N/mm^2) 107
    Pressure of locking set on hub (N/mm^2) 55
    Tarifnumber 0
