HUB LOCK KLHH095
HUB LOCK KLHH095
Itemnumber:
SPÆNDKLHH095
Standard sales price EUR 226.84
EUR 181.47
/ STK
EUR 145.18 ex. VAT
95X138
More information
Need support?
Please contact Customer Service: +45 86 15 01 11

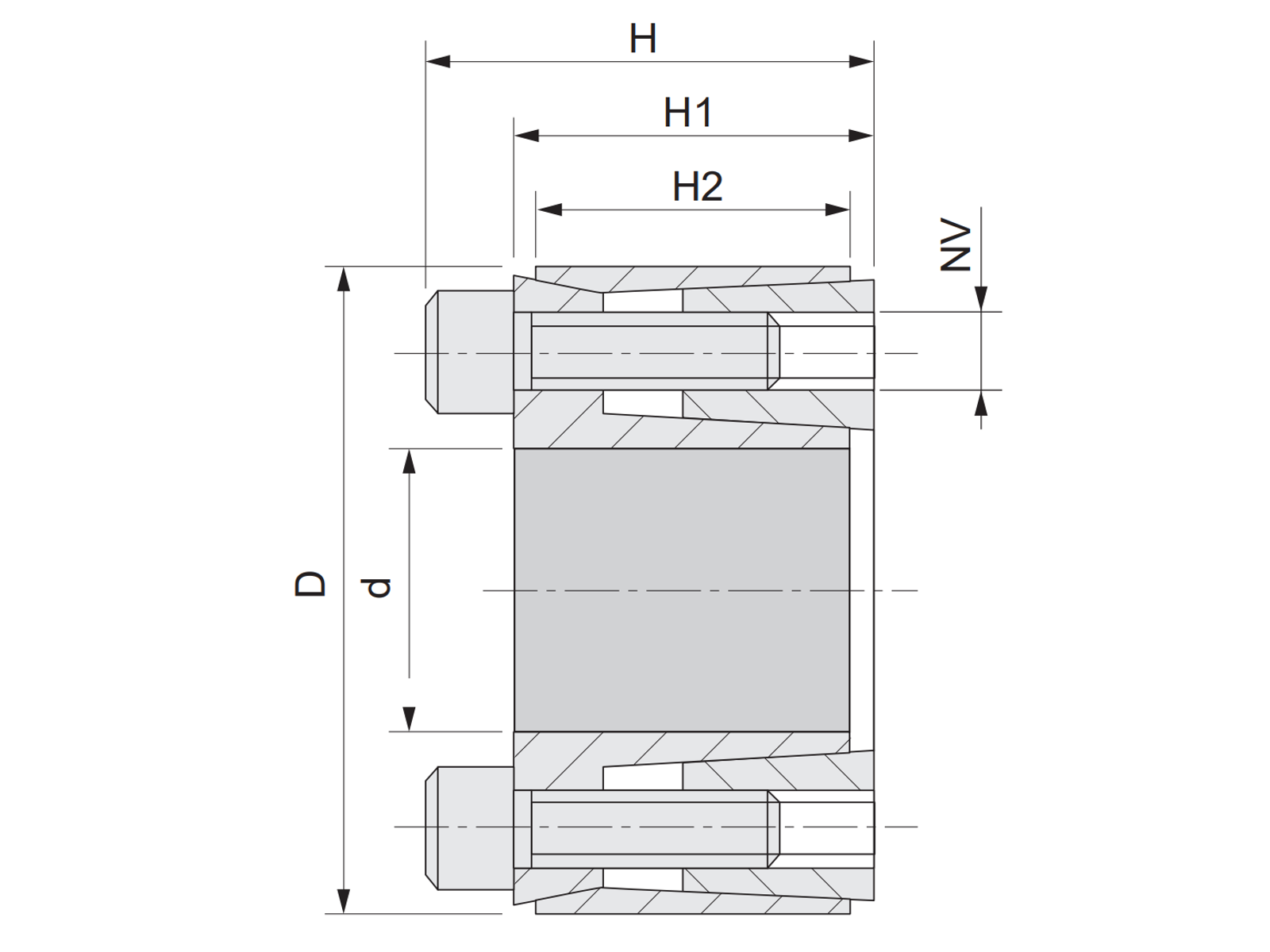

Specifications
Inner diameter
95.00
Outer diameter
138.00
Description
95X138
Height (H)
45
Height (H1)
35
Height (H2)
30
Bolt size
M10x30
No. of screws to tighten
10
No. of screws to loosen
4
Transmissible torque of locking set (Nm)
6,377
Transmissible axial force (KN)
134
Pressure of locking set on shaft (N/mm^2)
126
Pressure of locking set on hub (N/mm^2)
83
Additional info
Self-locking
