HUB LOCK KLMM055

Itemnumber: SPÆNDKLMM055
Standard sales price EUR 214.78
EUR 171.82 / STK
EUR 137.46 ex. VAT
Need support?
Please contact Customer Service: +45 86 15 01 11

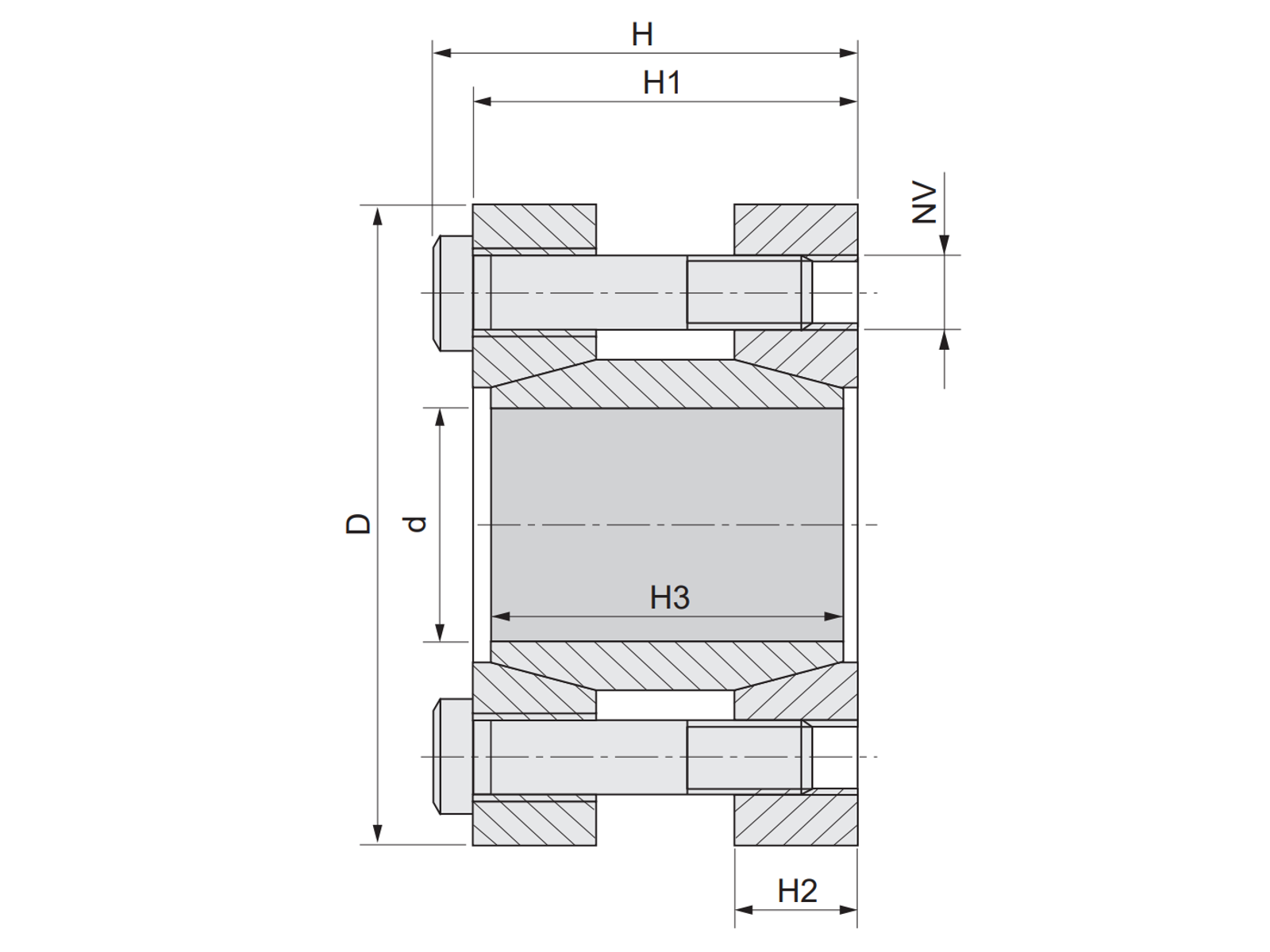

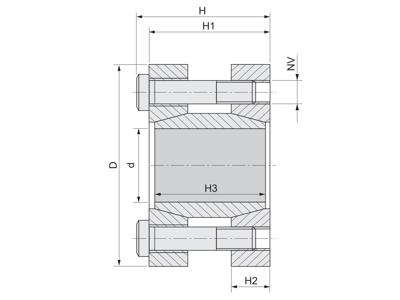

  • Inner diameter 55.00
    Outer diameter 94.00
    Description 55X94
    Height (H) 93
    Height (H1) 85
    Height (H2) 24.50
    Height (H3) 76
    Bolt size M8x80
    No. of screws to tighten 8
    Transmissible axial force (KN) 2,147
    Pressure of locking set on shaft (N/mm^2) 78
    Pressure of locking set on hub (N/mm^2) 110
