HUB LOCK KLNN010

Name: HUB LOCK KLNN010
SKU: SPÆNDKLNN010
Price: 5.275 EUR
Availability: OutOfStock

Itemnumber: SPÆNDKLNN010

Standard sales price EUR 10.55

EUR 5.27 / STK

EUR 4.22 ex. VAT

Need support?
Please contact Customer Service: +45 86 15 01 11

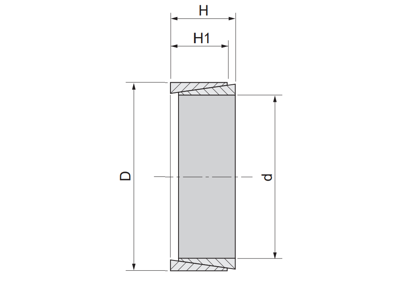

Inner diameter	10.00
Outer diameter	13.00
Height (H)	4.50
Height (H1)	3.70
Transmissible torque of locking set (Nm)	7.60
Transmissible axial force (KN)	1.53
Pressure of locking set on shaft (N/mm^2)	100
Pressure of locking set on hub (N/mm^2)	86
Tarifnumber	0
